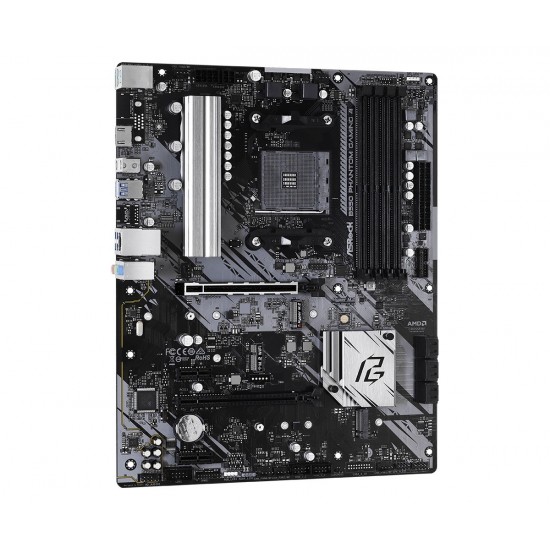

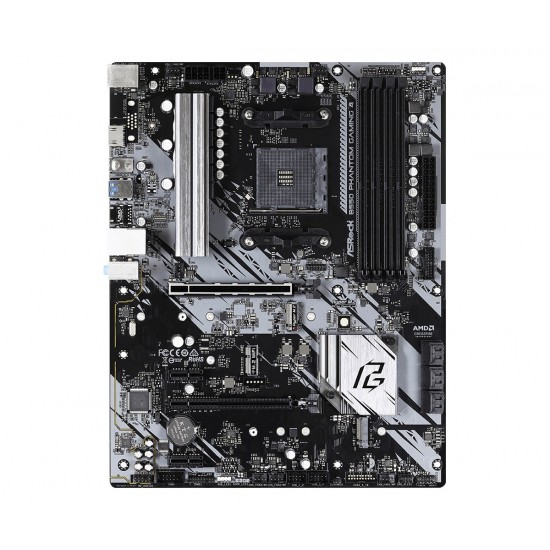

Płyta główna B550 Phantom Gaming 4 AM4 4DDR4 HDMI M.2 ATX

B550 Phantom Gaming 4

30.5 x 24.4 cm

Oprogramowanie:

• ASRock Motherboard Utility (Phantom Gaming Tuning)
• ASRock Polychrome SYNC
• ASRock Key Master
• ASRock XFast LAN

UEFI:

• ASRock Full HD UEFI
• ASRock Instant Flash

• Przewodnik szybkiej instalacji
• CD: sterowniki, narzędzia, oprogramowanie antywirusowe (wersja próbna), przeglądarka Google Chrome i pasek narzędzi
• 2 x kabel SATA
• 3 x  śruby do gniazd M.2

AMD B550

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

CPU:

• Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors*
• Digi Power design
• 8 Power Phase design

• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
• 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

• Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.**
• Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
• Supports HDR (High Dynamic Range) with HDMI 2.1
• Supports HDCP 2.3 with HDMI 2.1 Port
• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
• Supports Microsoft PlayReady

• 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• PCB Isolate Shielding
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio

• 256Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
