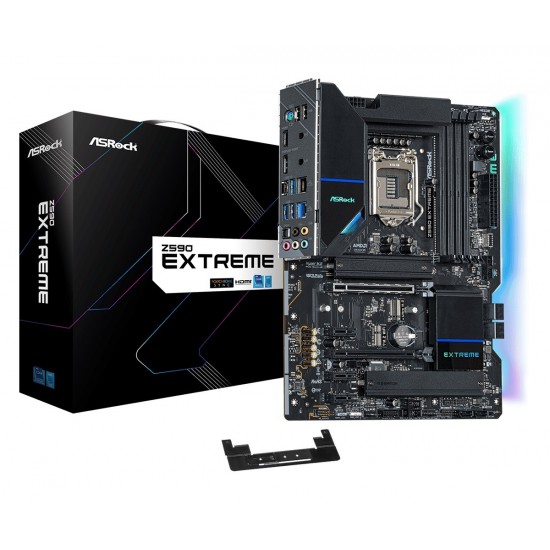

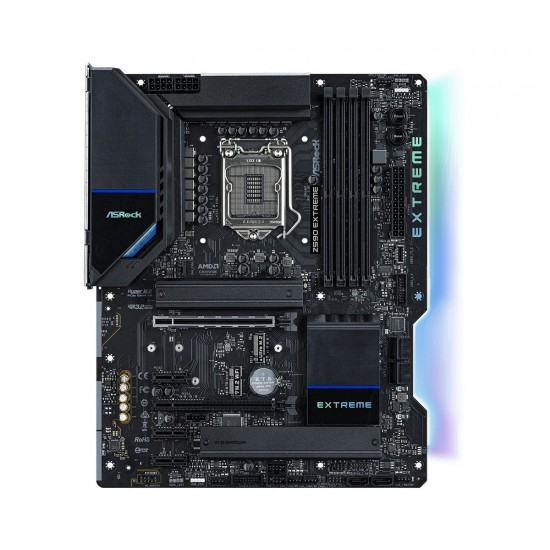

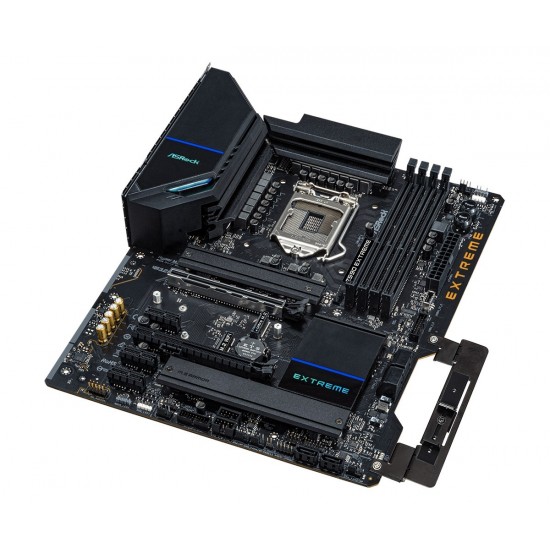

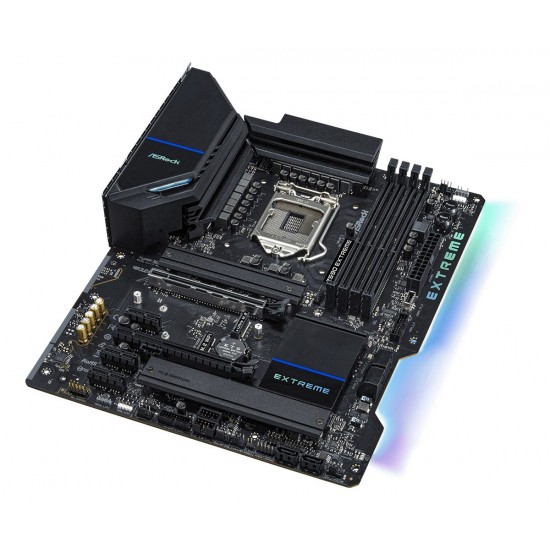

Płyta główna Z590 Extreme s1200 4DDR4 HDMI/DP M.2 ATX

Z590 EXTREME

30.5 cm x 24.4 cm

• Skrócona instrukcja instalacji, pomocniczy dysk CD
• 4 x kable danych SATA
• 4 x śruby do gniazd M.2
• 2 x wsporniki do gniazd M.2
• 1 x uchwyt na kartę graficzną

Intel Z590

• 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

RAID 0, RAID 1, RAID 5, RAID 10

• 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
•  Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
• Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
• Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
• Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
• Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• Pure Power-In
• Direct Drive Technology
• PCB Isolate Shielding
• Impedance Sensing on Rear Out port
• Individual PCB Layers for R/L Audio Channel
• Gold Audio Jacks
• 15 Gold Audio Connector
• Nahimic Audio

• ASRock USB 3.2 Gen2
• - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
• ASRock Super Alloy
• - XXL Aluminum Alloy Heatsink
• - Premium 60A Power Choke
• - 50A Dr.MOS
• - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
• - I/O Armor
• - Shaped PCB Design
• - Matte Black PCB
• - High Density Glass Fabric PCB
• - 2oz Copper PCB
• 2.5G LAN
• ASRock Steel Slot
• ASRock Full Coverage M.2 Heatsink
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock Ultra USB Power ASRock POST Status Checker (PSC)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment
